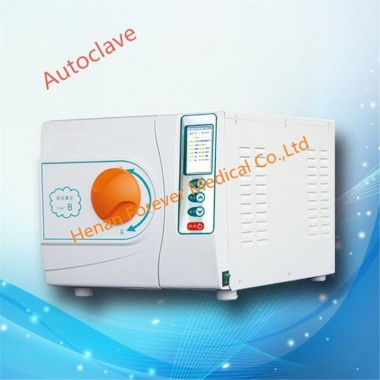

23L B Class Economical Dental Instrument Autoclave

  • Purchase Qty: 1
  • Unit: Vial(s)
  • Fob Unit Price: US $1430
  • Payment Terms:L/C , T/T , D/P , PayPal
  • Favorite
Henan Forever Medical Co., Ltd.

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Certification:CE
  • Net Weight:52KGS
  • Dimension:440*350*390mm
  • Packaging Details:Standard Package
  • Brand Name:Forever Medical
  • Place of Origin:China
  • Warranty:1 year
  • Sterilization Class:B
  • Capacity:18L
  • Inner Chamber Size:245mm X 350mm
  • Capacity of Water Tank:1.5L
  • Water Capacity by Each Circle:0.3L
  • Power:1600W
  • Working Pressure:80kpa~200kpa
  • Voltage:AC220V/50Hz or 110V/60Hz
  • Weight:52KGS

Description

B Class Medical Use Dental Autoclave


TPVX series vacuum autoclave is B grade(EN13060) small-size sterilization device,with vacuum pump inside.Using high temperature and pressure for the sterilization of multi-aperture instruments and apparatus.It is mainly intended for dental, operating room,ophthalmology,gynaecology instruments,etc.

Sterilized Target: Various of apparatus and dressings.
Sterilized program:Exposed,Packed,Cotton-padded,Plastic
Sterilized Effect:Perish all the microorganism
Dry program: High effective drying progress
Heating Methods:Using the newest steam heat booster technology
Security measurement: 1,fault self-checking.2, Auto-protection of high temperature and high Pressure.3,Dual electronic lock.4,Safety valve
Main Advantages:
1,Economical and space saving
This equipment is an excellent economical, space-saving autoclave providing large capacity.
2,Full automation control, pulsing vacuum
The high pressure Autoclave adopt the microcomputer processor, pre-heat,vacuum,sterilization,dry,cooling. The whole course trend showing. and it have lack and full water humanity operate point.
It possess the function of evacuate for three times, the sterilization effect is the most thorough.
3,Sterilizer Completely
It has 3 times pre-vacuum and 1 time after vacuum.Polluted and clean water functions are separated.
4,Sterilization method classify clearly and definitely
Four sterilizer procedures by micro control set freely according to different sterilization products:exposed apparatus,wrapped apparatus,cotton-padded and plastic product
5,The process of sterilization do not exhaust the steam. greens environmental protection
Water purifying tank separate with the drain tank,exhaust and drain contamination enter into the drain tank. During the sterilization process, no drain gas get into the room, avoid the atmospheric pollution, prevent the operator scald.
6,Various Security protect functions to ensure the operation safety
fault self-checking, auto-protection of high temperature and high Pressure. Dual electronic lock. safety valve standby exhaust, the whole organic and draw sterilizing room,after the precised oxidization, enhance the gloss and fastening; The program set up the cooling after the sterilization, protect the safety of the operator!
7,It has a durable plastic shell and stainless steel chamber and is manufactured with fine workmanship.

ModelYJ-TPV18XYJ-TPV23XYJ-TPV25X
Sterilization ClassBBB
Capacity18L23L25L
Inner Chamber Size
(Diameter x Depth)
245mm X 350mm245mm X 450mm250mm*500mm
Working Pressure/Temperature0.9-1.3bar/121ºC(Normal Atmosphere)
2.0~2.3bar/135ºC(Normal Atmosphere)
Capacity of Water Tank1.5L2L2L
Water Capacity by each circle0.3L0.3L0.3L
Ambient Temperature0~40ºC0~40ºC0~40ºC
Fuse TubeT15AT15AT15A
Rating Input Power1600w1800w1800w
VoltageAC220V/50Hz or 110V/60HZ
External Size440*530*390mm440*650*390mm440*690*390mm
Net Weight48KGS52KGS55KGS
Standard SetsThe integral bracket,the apparatus bracket,the handing rack,the exhaust and drainage pipe,The standby rubber ring.
