Professional Trolley Ultrasound Scanner Machine Black and White System Yj-350t- Henan Forever Medical Co., Ltd.

Home>Product>Professional Trolley Ultrasound Scanner Machine Black and White System Yj-350t

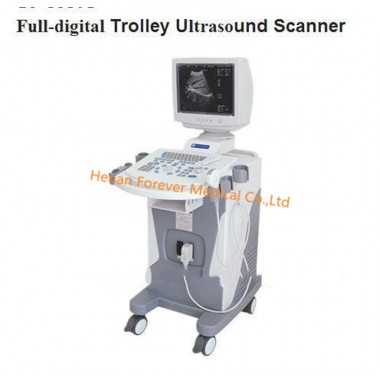

Professional Trolley Ultrasound Scanner Machine Black and White System Yj-350t

Purchase Qty: 1
Unit: Vial(s)
Fob Unit Price: US $3098
Payment Terms:L/C , PayPal , Western Union

Favorite

Henan Forever Medical Co., Ltd.

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

Model:YJ-350T
Certification:CE
Packaging Details:Standard Package
Brand Name:Forermed
Place of Origin:China
Warranty:1 year
Probe Transducer Types:3.5 MHz Convex Probe
Focus:Continuous Dynamic Focus
Display:14 Inch High Resolution Monitor
Gray Scale:256
Keyboard:Light Floating International Standard
Zoom:10 Steps
Memory:Cine‐memory
Power:AC 100V to 240V±10%
Detecting Depth:220mm

Description

Product DescriptionNew Standing style medical instrument ultrasound machine

Full Digital CE Approval Ultrasound Diagnostic System

14 inch high resolution CRT monitor,
Exquisite image quality and excellent stability,

YJ-U310T Full-digital Trolley Ultrasound Scanne

Model	YJ-U350T
Display mode	B, B+B, 4B, B+M, M

Application
Human Body &Veterinary
Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery,
Superficial organ, Orthopedics, Musculoskeletal, Vascular, etc.

Probe
Transducer Types

Probe	5 Steps Multi-frequency
3.5Mhz convex probe	(2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)
6.5Mhz transvaginal probe	(5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)
7.5Mhz linear probe	(6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz)
3.5Mhz micro convex probe	(2.0/ 2.5/ 3.5/4.5/ 5.0Mhz)
3.5Mhz phased array probe	(2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz)

Main features

Full digital image formation technology
Advanced all dynamic focusing
USB port: storable and readable
High-accuracy DSC digital scan conversion
Humanized ABS injection mould, unibody chassis
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology
Unique 4B imaging modes
Reliable backlit, silica gel keyboard, photoelectric-tracking control

Technical specification

Scanning mode: convex / linear / micro-convex
Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe,
high frequency linear probe
Monitor: 14 inch high resolution CRT
Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display mode: B, B+B, B+M, M, 4B
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256

Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback
and manual single step forward, backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.

Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20,
×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Body marks: 30
Probe interface: 2
Pseudo color: 7

Image processing:
up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).

Measurement: distance, perimeter, area, volume, heart rate, gestational week,
FW, AFI, EDD , maternity table, heart package etc.

Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V , 50/60Hz

Standard configuration

14 inch high resolution CRT monitor
3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)

Options

6.5MHz Trans-vaginal probe(5.5MHz-7.5MHz)

7.5MHz High frequency linear probe(6.5MHz-8.5MHz)

FAQ :

1. Delivery time: 3~5 working days after payment.
2. Payment Term: TT, Paypal,West Union in advance before delivery.
3. After sales service: Any time you contact us, we will be right here service for you.

For more Hospital machine detailed information, please feel free to contact with our sales team.We are always here to service for you!
